● Laminate

● Film Laminate

● Press

● Heat Press

● Flat Bed Laminating

● Automatic tracking cutting

● Different Gluing Way

Feature:

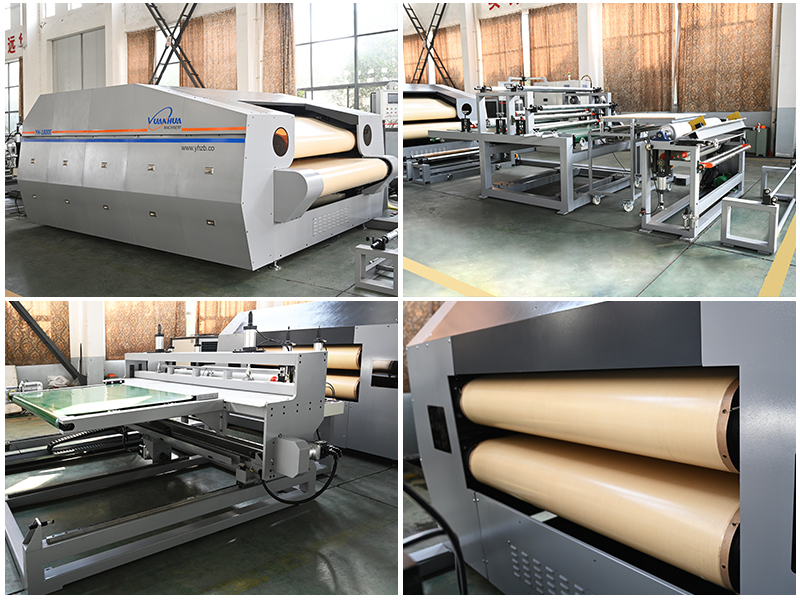

The pressure is transferred by two conveyor belts up and down and the contact is heated and cooled

While the system is integrated, the composite material will heat evenly because with a long enough heating zone, the material will be perfectly compounded and have high strength, materials can be laminated together after heating and passed through the pressure roller to adjust the material height, in order to ensure the composite strength, before the material out of the conveyor belt, the front is cooled through the gaps between the conveyor belts and the precise height adjustment section, even 150mmd rigid sheet can be composite.

The Heating system is divided into 18 zones that can be separately control by PLC system. Which there are 9 separately zones in the top heating plate and 9 separately zones in the bottom heating plate.

The space between top plate and bottom plate is adjustable.

The height of the upper conveyor belt system can be precisely raised in order to adjust the spacing between the upper and lower belts, so that it is consistent with the thickness of the material.

Multiple ways of Laminating:

● Glue Powder

● Hot Melt Film

● Soluble adhesive

● SolidGlue After Melting

Application:

Carbon fiber, ceramic fiber, glass fiber, Aerogel blanket,sound insulation absorbent cotton, aramid fiber, cotton,Aramong, honeycomb panel, Graphene, Bulletproof material, etc

△ Medical Industry

   Film Laminate, Material Compressed...

△ Automobile Industry

Battery insulation，Aerogel Blanket...

△ Material Lamination

Fiber Laminate, Multiple Material Laminate...

△ Filter Industry

Activated Carbon Filter, Non-woven material Processing...

△ Military Project

Armor, Battle Dress Uniform...
